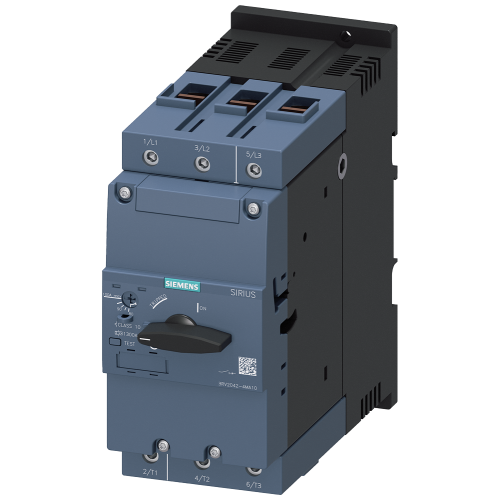

3RV20424MA10

Circuit breaker size S3 for motor protection, CLASS 10 A-release 80...100 A N-release 1300 A screw t

Manufacturer's No: 3RV2042-4MA10     Manufacturer: Siemens
Circuit breaker size S3 for motor protection, CLASS 10 A-release 80...100 A N-release 1300 A screw t

View 3D

Availability In Stock

£404.97
  • Circuit breaker size: S3
  • Motor protection class: CLASS 10
  • A-release: 80-100 A
  • N-release: 1300 A
  • Screw terminal
  • Increased switching capacity: 100 kA

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.21
Back Order
Price £0.0233
Back Order


Product

Manufacturer Material ID -
3RV2042-4MA10
Net Weight -
2.27kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Rated short-circuit breaking capacity Icu at 400 V, AC -
100 kiloampere

General data

Degree of protection (IP) -
IP20
With thermal protection -
Type of control element -
Turn button
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Degree of protection (IP rating) -
IP20
Device construction -
Built-in device fixed built-in technique
Number of poles -
3
Phase failure sensitive -
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection

Electrical data

Adjustment range undelayed short-circuit release -
1300 Ampere
Overload release current setting -
80 Ampere
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
30 Kilowatt
Rated operation power at AC-3, 400 V -
45 Kilowatt
Rated permanent current Iu -
100 Ampere

Mechanical data

Depth -
176 Millimetre
Height -
165 Millimetre
Width -
70 Millimetre

Availability In Stock

£404.97
