3RV20314PB15

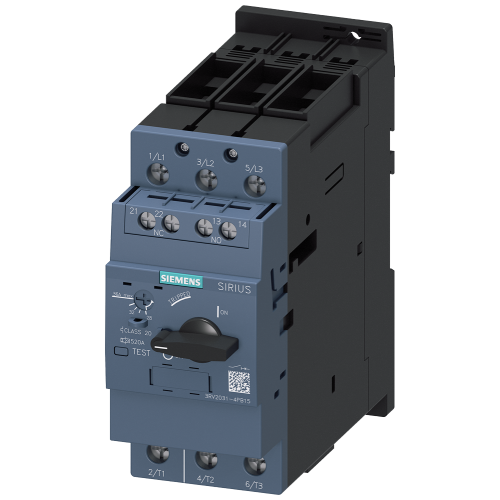

Circuit breaker S2 motor protection Class20 A release 28...36 A short-circuit release 520 A

Manufacturer's No: 3RV2031-4PB15     Manufacturer: Siemens
Circuit breaker S2 motor protection Class20 A release 28...36 A short-circuit release 520 A

View 3D

Availability Back Order

£233.97
  • Circuit breaker size: S2
  • Motor protection class: 20 A
  • A-release: 28...36 A
  • N-release: 520 A
  • Screw terminal
  • Standard switching capacity with transverse auxiliary switch: 1 NO + 1 NC

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Component part

Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2031-4PB15
Net Weight -
1.13kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
520 Ampere
Degree of protection (IP rating) -
IP20
Depth -
149 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
140 Millimetre
Number of poles -
3
Overload release current setting -
28 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
11 Kilowatt
Rated operation power at AC-3, 400 V -
18.5 Kilowatt
Rated permanent current Iu -
36 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
55 Millimetre
With integrated auxiliary switch -

Availability Back Order

£233.97
