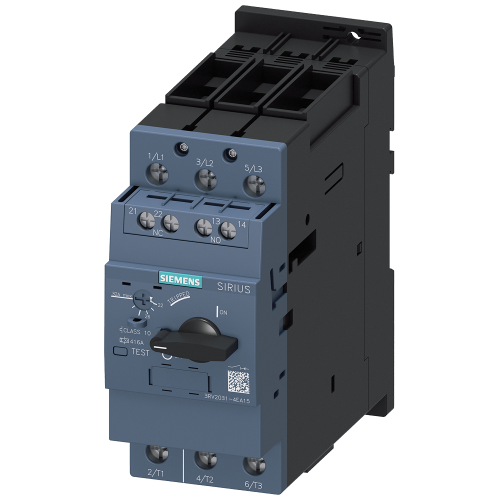

3RV20314EA15

Circuit breaker size S2 for motor protection, CLASS 10 A-release 22...32 A N-release 416 A screw ter

Manufacturer's No: 3RV2031-4EA15     Manufacturer: Siemens
Circuit breaker size S2 for motor protection, CLASS 10 A-release 22...32 A N-release 416 A screw ter

View 3D

Availability Back Order

£180.94
  • Circuit breaker size: S2
  • Motor protection class: CLASS 10
  • A-release: 22-32 A
  • N-release: 416 A
  • Screw terminal
  • Standard switching capacity with 1 NO + 1 NC transverse auxiliary switches

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Component part

Question and Answer (Q&A video)
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video
Instructional video
Product video
Presentation video


Product

Manufacturer Material ID -
3RV2031-4EA15
Net Weight -
1.07kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
With thermal overload protection -
Type of control element -
Rotating button
Rated short-circuit breaking capacity lcu at 400 V, AC -
65 kiloampere
Adjustment range undelayed short-circuit release -
416 Ampere
Degree of protection (IP rating) -
IP20
Depth -
149 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
140 Millimetre
Number of poles -
3
Overload release current setting -
22 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 230 V -
7.5 Kilowatt
Rated operation power at AC-3, 400 V -
15 Kilowatt
Rated permanent current Iu -
32 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
65 kiloampere
Switch off technique -
Magnetic
Type of electrical connection of main circuit -
Screw connection
Width -
55 Millimetre
With integrated auxiliary switch -

Availability Back Order

£180.94
