3RV20214BA150BA0

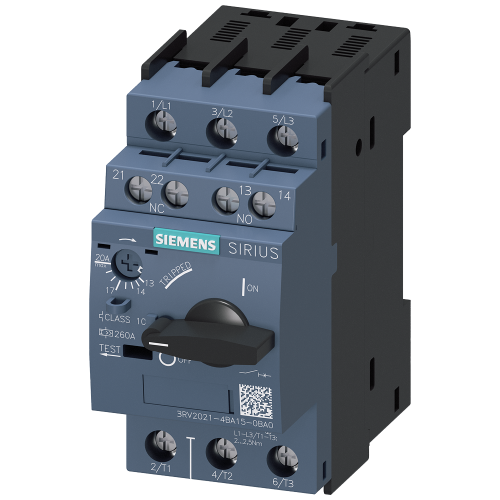

Circuit breaker, S0, motor protection, Class 10, thermal overload release 13-20 A, short-circuit release 260 A

Manufacturer's No: 3RV2021-4BA15-0BA0     Manufacturer: Siemens
Circuit breaker, S0, motor protection, Class 10, thermal overload release 13-20 A, short-circuit release 260 A

View 3D

Availability Back Order

£119.30
  • Circuit-breaker model: SZ S0
  • Designed for motor protection
  • Class 10
  • A-release: 13-20A
  • N-release: 260A
  • Screw connection
  • Standard switching capacity
  • Equipped with 1 normally open and 1 normally closed auxiliary switch

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order

Component part

Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2021-4BA15-0BA0
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
7.5 Kilowatt
With integrated auxiliary switch -
Rated permanent current Iu -
20 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
13 Ampere
Degree of protection (IP rating) -
IP20
With thermal overload protection -
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Rotating button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
5.5 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
55 kiloampere
Adjustment range undelayed short-circuit release -
260 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique

Availability Back Order

£119.30
