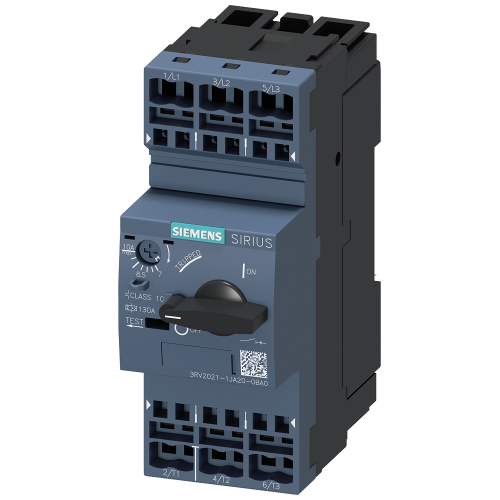

3RV20211JA200BA0

Circuit breaker, S0, motor protection, Class 10, A-release7-10 A, short-circuit release130 A, special type

Manufacturer's No: 3RV2021-1JA20-0BA0     Manufacturer: Siemens
Circuit breaker, S0, motor protection, Class 10, A-release7-10 A, short-circuit release130 A, special type

View 3D

Availability Back Order

£100.75
  • Special type Circuit breaker size S0 for motor protection
  • CLASS 10 A-release: 7...10 A
  • N release: 130 A
  • Spring-type terminal
  • Standard switching capacity
  • Ambient temperature: -50°C
  • 500 switching cycles

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2021-1JA20-0BA0
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
Width -
45 Millimetre
Height -
119 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
4 Kilowatt
Rated permanent current Iu -
10 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
7 Ampere
Degree of protection (IP rating) -
IP20
With thermal overload protection -
Type of electrical connection of main circuit -
Spring clamp connection
Type of control element -
Rotating button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
2.2 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
130 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique

Availability Back Order

£100.75
