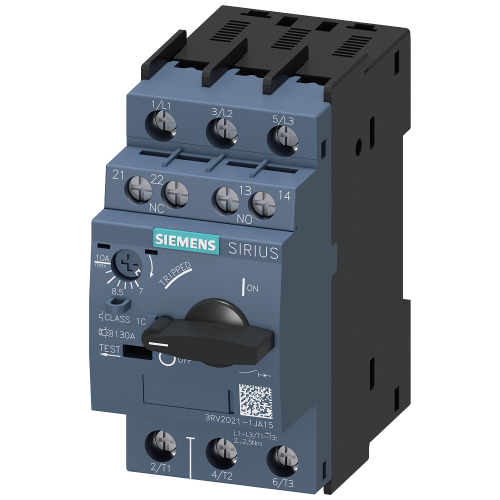

3RV20211JA15

Circuit breaker size S0 for motor protection, CLASS 10 A-release 7...10 A N release 130 A screw term

Manufacturer's No: 3RV2021-1JA15     Manufacturer: Siemens
Circuit breaker size S0 for motor protection, CLASS 10 A-release 7...10 A N release 130 A screw term

View 3D

Availability In Stock

£88.15
  • Circuit breaker size: S0
  • Motor protection class: CLASS 10
  • A-release: 7...10 A
  • N-release: 130 A
  • Screw terminal
  • Standard switching capacity with transverse auxiliary switches: 1 NO + 1 NC

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order

Component part

Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2021-1JA15
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
4 Kilowatt
With integrated auxiliary switch -
Rated permanent current Iu -
10 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
7 Ampere
Degree of protection (IP rating) -
IP20
With thermal overload protection -
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Rotating button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
2.2 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
130 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique

Availability In Stock

£88.15
