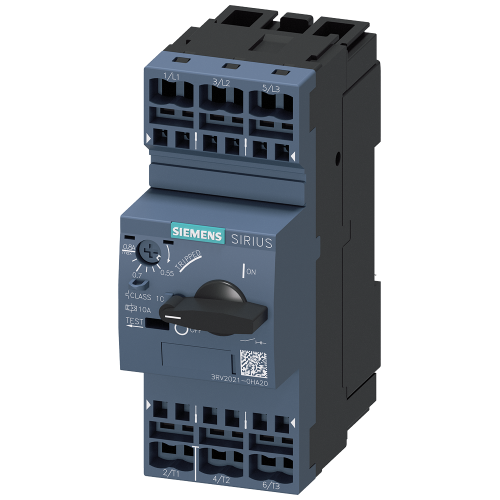

3RV20210HA20

Circuit breaker size S0 for motor protection, CLASS 10 A-release 0.55...0.8 A N-release 10 A Spring-type terminal Standard switchi

Manufacturer's No: 3RV2021-0HA20     Manufacturer: Siemens
Circuit breaker size S0 for motor protection, CLASS 10 A-release 0.55...0.8 A N-release 10 A Spring-type terminal Standard switching capacity

View 3D

Availability Back Order

£59.39
  • Circuit breaker size: S0
  • Motor protection class: CLASS 10
  • A-release: 0.55 - 0.8 A
  • N-release: 10 A
  • Spring-type terminal
  • Standard switching capacity

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order
Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2021-0HA20
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
Width -
45 Millimetre
Height -
119 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
0.2 Kilowatt
Rated permanent current Iu -
0.8 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
0.55 Ampere
Degree of protection (IP rating) -
IP20
With thermal overload protection -
Type of electrical connection of main circuit -
Spring clamp connection
Type of control element -
Rotating button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
0.1 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
10 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique
