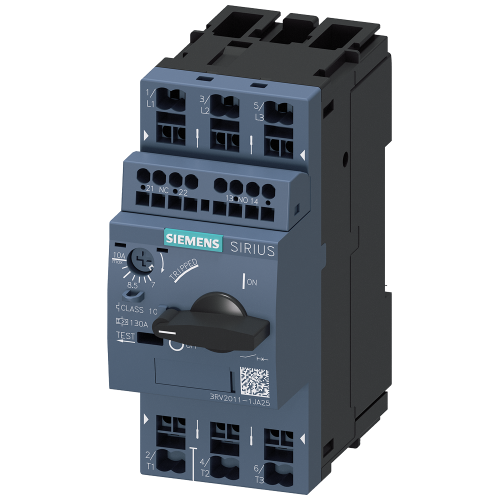

3RV20111JA25

Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A Spring-ty

Manufacturer's No: 3RV2011-1JA25     Manufacturer: Siemens
Circuit breaker size S00 for motor protection, CLASS 10 A-release 7...10 A N release 130 A Spring-ty

View 3D

Availability Back Order

£85.50
  • Circuit breaker size: S00
  • Motor protection
  • CLASS 10 A-release: 7...10 A
  • N release: 130 A
  • Spring-type terminal
  • Standard switching capacity
  • Transverse auxiliary switches: 1 NO + 1 NC

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order

Component part

Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2011-1JA25
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85362090
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Degree of protection (IP) -
IP20
With thermal protection -
Rated permanent current Iu -
10 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
7 Ampere
Degree of protection (IP rating) -
IP20
With thermal overload protection -
Type of electrical connection of main circuit -
Spring clamp connection
Type of control element -
Rotating button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
2.2 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
130 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique
Width -
45 Millimetre
Height -
106 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
4 Kilowatt
With integrated auxiliary switch -

Availability Back Order

£85.50
