3RV20111CA150BA0

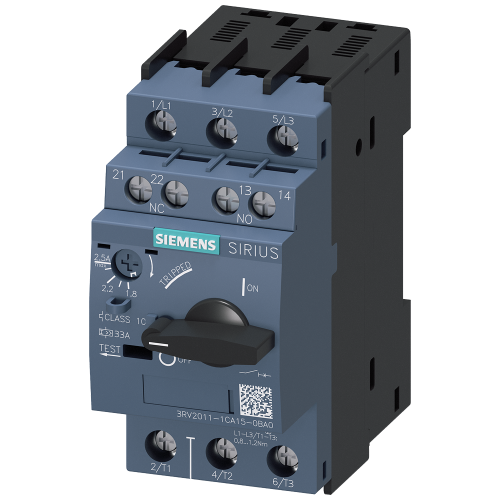

Circuit breaker, S00, motor protection, Class 10, A-release 1.8-2.5 A, short-circuit release 33 A

Manufacturer's No: 3RV2011-1CA15-0BA0     Manufacturer: Siemens
Circuit breaker, S00, motor protection, Class 10, A-release 1.8-2.5 A, short-circuit release 33 A

View 3D

Availability Back Order

£106.05
  • Special type Circuit breaker size S00 for motor protection
  • CLASS 10 A-release: 1.8...2.5 A
  • N-release: 33 A
  • Screw terminal
  • Standard switching capacity with transverse auxiliary switches: 1 NO + 1 NC
  • Ambient temperature: -50°C
  • 500 switching cycles

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order

Push-in lug

Product Code - 3RV29280B
Price £0.33
Back Order
Price £0.0233
Back Order

Component part

Presentation video
Product video
Question and Answer (Q&A video)
Instructional video


Product

Manufacturer Material ID -
3RV2011-1CA15-0BA0
Net Weight -
0.36kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121601

Technical Specification

Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
0.75 Kilowatt
With integrated auxiliary switch -
Rated permanent current Iu -
2.5 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
1.8 Ampere
Degree of protection (IP) -
IP20
With thermal protection -
Type of electrical connection of main circuit -
Screw connection
Type of control element -
Turn button
Switch off technique -
Magnetic
Rated operation power at AC-3, 230 V -
0.37 Kilowatt
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
33 Ampere
Phase failure sensitive -
Device construction -
Built-in device fixed built-in technique

Availability Back Order

£106.05
