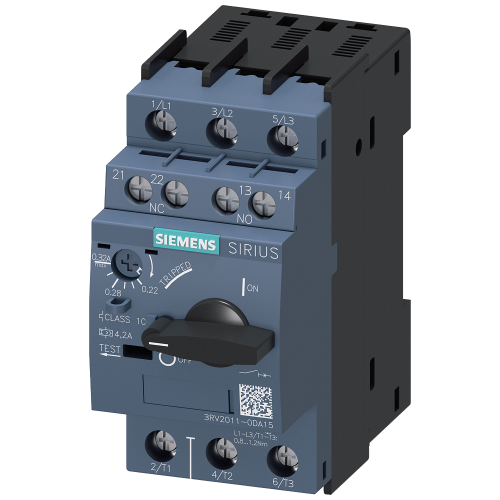

Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.22...0.32 A N-release 4.2 A scre

3RV20110DA15

Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.22...0.32 A N-release 4.2 A scre

Produced by Siemens

Availability Back Order

Price - £65.88
Circuit breaker size S00 for motor protection, CLASS 10 A-release 0.22...0.32 A N-release 4.2 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC

3RT29001SB20

Labeling plates 20x7 mm titanium-gray

£0.22
Back Order
No alternatives available for this product.
Product
Manufacturer Material ID -
3RV2011-0DA15
Net Weight -
0.30kg
Additional Product Information
Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601
Technical Specification
Width -
45 Millimetre
Height -
97 Millimetre
Depth -
97 Millimetre
Rated operation power at AC-3, 400 V -
0.09 Kilowatt
Rated permanent current Iu -
0.32 Ampere
Number of poles -
3
Rated operating voltage -
690 Volt
Overload release current setting -
0.22 Ampere
Rated short-circuit breaking capacity lcu at 400 V, AC -
100 kiloampere
Adjustment range undelayed short-circuit release -
4.2 Ampere
