3RV10414JA10

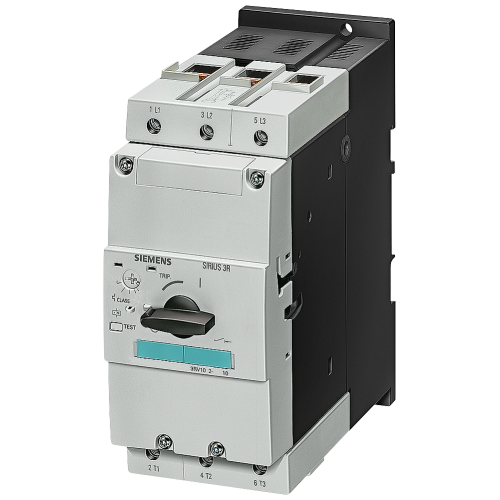

Circuit breaker size S3 for motor protection, Class 10 A-release 45...63 A Short-circuit release 819

Manufacturer's No: 3RV1041-4JA10     Manufacturer: Siemens
Circuit breaker size S3 for motor protection, Class 10 A-release 45...63 A Short-circuit release 819

Availability Back Order

POA

This product has been superseded by

3RV20314JA10

Please check compatibility before purchasing.

  • Circuit breaker size: S3
  • Motor protection class: Class 10
  • A-release: 45-63 A
  • Short-circuit release: 819 A
  • Screw terminal
  • Phased-out product
  • Successor model: SIRIUS 3RV2
  • Preferred successor type: 3RV2031-4JA10

Accessories

Labeling plates 20x7 mm titanium-gray

Product Code - 3RT29001SB20
Price £0.22
Back Order
Price £0.0233
Back Order

Follow-up article

Question and Answer (Q&A video)
Instructional video
Presentation video
Product video
Question and Answer (Q&A video)
Presentation video
Instructional video


Product

Manufacturer Material ID -
3RV1041-4JA10
Net Weight -
2.25kg

Additional Product Information

Commodity Code -
85362010
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121601

Technical Specification

Switch off technique -
UN
Rated operation power at AC-3, 230 V -
- Kilowatt
Adjustment range undelayed short-circuit release -
- Ampere
Degree of protection (IP) -
IP20
Type of control element -
Turn button
Rated short-circuit breaking capacity lcu at 400 V, AC -
50 kiloampere
Degree of protection (IP rating) -
IP20
Depth -
174 Millimetre
Device construction -
Built-in device fixed built-in technique
Height -
165 Millimetre
Number of poles -
3
Overload release current setting -
45 Ampere
Phase failure sensitive -
Rated operating voltage -
690 Volt
Rated operation power at AC-3, 400 V -
30 Kilowatt
Rated permanent current Iu -
63 Ampere
Rated short-circuit breaking capacity Icu at 400 V, AC -
50 kiloampere
Type of electrical connection of main circuit -
Screw connection
Width -
70 Millimetre

Availability Back Order

POA
Sign in or Register for customer prices.

This product has been superseded by

3RV20314JA10

Please check compatibility before purchasing.
