3RT20151BB443MA0

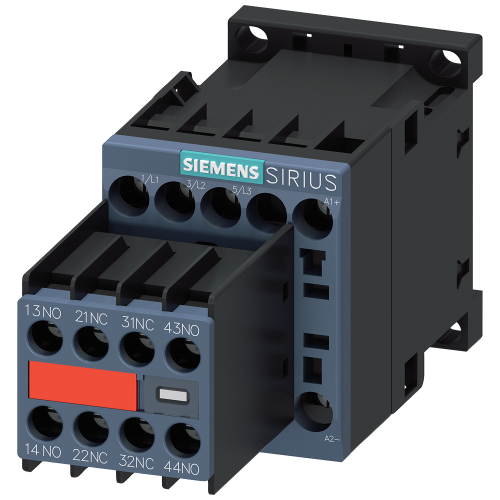

Power contactor, AC-3 7 A, 3kW / 400 V 2 NO + 2 NC, 24 V DC 3-pole, Size S00 screw terminal Captive

Manufacturer's No: 3RT2015-1BB44-3MA0     Manufacturer: Siemens
Power contactor, AC-3 7 A, 3kW / 400 V 2 NO + 2 NC, 24 V DC 3-pole, Size S00 screw terminal Captive

Availability In Stock

£52.10
  • Power contactor for AC-3e/AC-3 applications
  • Rated at 7 A and 3 kW / 400 V
  • 3-pole contactor with 24 V DC coil
  • Equipped with 2 NO + 2 NC auxiliary contacts
  • Features screw terminals and captive auxiliary switch
  • Size: S00
Price £0.0233
Back Order
Product video


Product

Manufacturer Material ID -
3RT2015-1BB44-3MA0
Net Weight -
0.34kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Number of normally closed contacts as main contact -
-
Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Modular version -
Rated operation power at AC-3, 400 V -
3 Kilowatt
Number of main contacts as normally open contact -
3
Number of auxiliary contacts as normally open contact -
2
Number of auxiliary contacts as normally closed contact -
2
Rated operation current Ie at AC-3, 400 V -
7 Ampere
Rated operation current Ie at AC-1, 400 V -
18 Ampere
Rated control supply voltage at DC -
24 Volt
Type of electrical connection of main circuit -
Screw connection
Voltage type for actuating -
DC
Rated operation current Ie at AC-4, 400 V -
6.5 Ampere
Rated operation power at AC-4, 400 V -
3 Kilowatt
Rated operation power NEMA -
2.20649625 Kilowatt

Availability In Stock

£52.10
