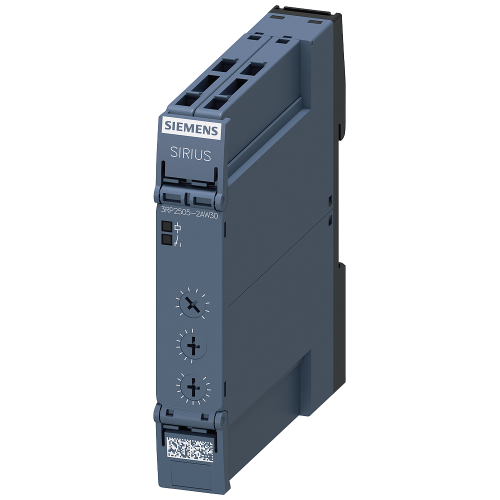

3RP25052AW30

Timing relay, 1 CO, 13 functions, 7 time ranges (0.05s-100h)

Manufacturer's No: 3RP2505-2AW30     Manufacturer: Siemens
Timing relay, 1 CO, 13 functions, 7 time ranges (0.05s-100h)

View 3D

Availability Back Order

£112.68
  • Timing relay with multifunctionality
  • 1 change-over contact
  • 13 functions available
  • 7 time ranges from 0.05 seconds to 100 hours
  • Operating voltage: 12-240 V AC/DC at 50/60 Hz
  • Equipped with LED indicator
  • Features spring-type terminals for easy connection

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2505-2AW30
Net Weight -
0.14kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
12 Volt
Rated control supply voltage Us at AC 60HZ -
12 Volt
Rated control supply voltage Us at DC -
12 Volt
With plug-in socket -
Type of electric connection -
Spring clamp connection
Depth -
90 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function flashing, starting with pulse, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Height -
100 Millimetre
Number of outputs, delayed, change-over contact -
1
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
0
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Time range -
0.05 Second
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre

Availability Back Order

£112.68
