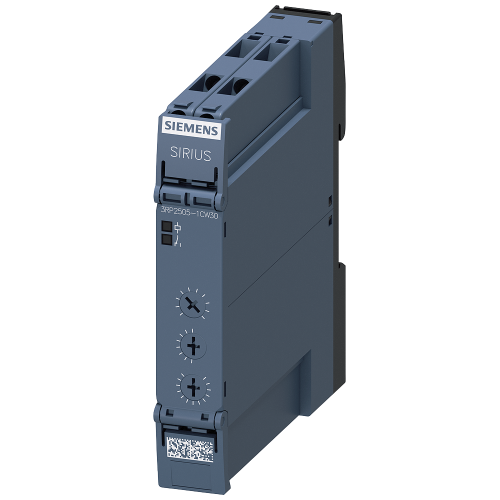

3RP25051CW30

Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED,

Manufacturer's No: 3RP2505-1CW30     Manufacturer: Siemens
Timing relay, Multifunction 1 NO semiconductor 13 functions 7 time ranges (0.05 s...100 h) 12-240 V AC/DC at 50/60 Hz AC with LED, Screw terminal

View 3D

Availability Back Order

£112.68
  • Timing relay with 13 functions
  • Multifunction with 1 Normally Open semiconductor output
  • 7 time ranges from 0.05 seconds to 100 hours
  • Operating voltage of 12-240 V AC/DC at 50/60 Hz
  • Equipped with LED indicator
  • Screw terminal for easy installation

Accessories

Product video
Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)


Product

Manufacturer Material ID -
3RP2505-1CW30
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Nominal current -
- Ampere
Rated control supply voltage Us at AC 50HZ -
12 Volt
Rated control supply voltage Us at AC 60HZ -
12 Volt
Rated control supply voltage Us at DC -
12 Volt
With plug-in socket -
Depth -
90 Millimetre
Function delay-on energization -
Function flashing, starting with pause, fixed time -
Function flashing, starting with pulse, fixed time -
Function floating contact on de-energization -
Function floating contact on energization -
Function pulse shaping -
Height -
100 Millimetre
Number of outputs, delayed, change-over contact -
0
Number of outputs, delayed, normally closed contact -
0
Number of outputs, delayed, normally open contact -
1
Number of outputs, undelayed, change-over contact -
0
Number of outputs, undelayed, normally closed contact -
0
Number of outputs, undelayed, normally open contact -
0
Rated control supply voltage at AC 50 Hz -
12 Volt
Rated control supply voltage at AC 60 Hz -
12 Volt
Rated control supply voltage at DC -
12 Volt
Time range -
0.05 Second
Type of electric connection -
Screw connection
Voltage type for actuating -
AC/DC
Width -
17.5 Millimetre
With semiconductor output -

Availability Back Order

£112.68
