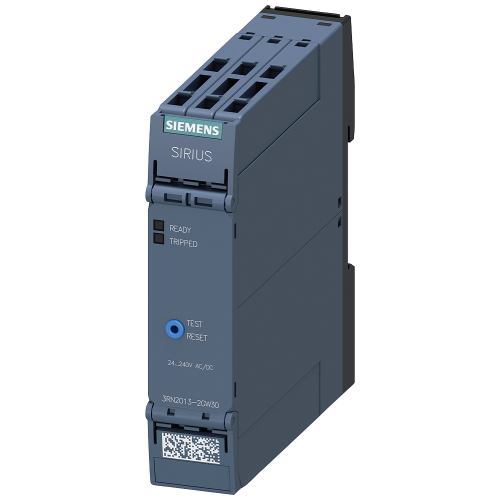

3RN20132GW30

Thermistor motor protection relay, standard, spring-type terminal, 2 CO, 24-240 V AC/DC

Manufacturer's No: 3RN2013-2GW30     Manufacturer: Siemens
Thermistor motor protection relay, standard, spring-type terminal, 2 CO, 24-240 V AC/DC

View 3D

Availability Back Order

£180.94
  • Thermistor motor protection relay
  • Standard evaluation unit in a 22.5 mm enclosure
  • Spring-type terminals with 2 change-over contacts hard gold-plated
  • Operating voltage range: 24 V-240 V AC/DC
  • Reset options: Manual/Auto/Remote with ATEX approval
  • Features 2 LEDs for status indication (READY/TRIPPED)
  • Safe galvanic isolation for enhanced safety
  • Includes test/reset button for convenience
  • Equipped with wire break and short circuit monitoring
  • Non-volatile memory for data retention

Accessories

Question and Answer (Q&A video)
Product video
Question and Answer (Q&A video)
Presentation video
Product video
Presentation video


Product

Manufacturer Material ID -
3RN2013-2GW30
Net Weight -
0.18kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us -
- Volt
Voltage type for actuating -
UN
Connection type auxiliary circuit -
Spring clamp connection
Depth -
90 Millimetre
Error registration possible -
External reset possible -
Height -
100 Millimetre
Number of contacts as change-over contact -
2
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
0
Number of measuring circuits -
1
Width -
22.5 Millimetre

Availability Back Order

£180.94
