3RM12023AA04

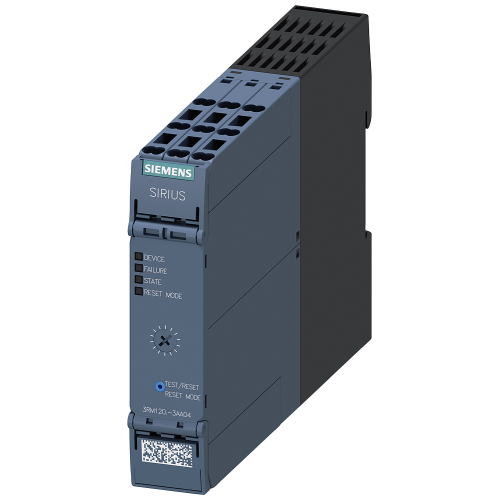

Motor starter SIRIUS 3RM1 Reversing starter 500 V; 0.4-2.0 A; 24 V DC Control circuit push-in Main c

Manufacturer's No: 3RM1202-3AA04     Manufacturer: Siemens

Availability Back Order

£183.60
  • Reversing starter model: 3RM1
  • Voltage: 500 V
  • Power range: 0.09 - 0.75 kW
  • Current range: 0.4 - 2 A
  • Control voltage: 24 V DC
  • Terminal type: Push-in

Accessories

Product video
Question and Answer (Q&A video)
Question and Answer (Q&A video)
Presentation video


Product

Manufacturer Material ID -
3RM1202-3AA04
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39121521

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated power, 575 V, 60 Hz, 3-phase -
- Kilowatt
Rated conditional short-circuit current, type 2, 400 V -
- Ampere
Rated conditional short-circuit current, type 2, 230 V -
- Ampere
Rated conditional short-circuit current, type 1, 480 Y/277 V -
- Ampere
Rated conditional short-circuit current, type 1, 600 Y/347 V -
- Ampere
Degree of protection (NEMA) -
UN
Coordination class according to IEC 60947-4-3 -
UN
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Width -
23 Millimetre
Height -
100 Millimetre
Depth -
142 Millimetre
Rated operation power at AC-3, 400 V -
0.75 Kilowatt
Number of command positions -
0
Number of auxiliary contacts as normally open contact -
1
Number of auxiliary contacts as normally closed contact -
1
Rated operation current Ie -
2 Ampere
Number of indicator lights -
4
Overload release current setting -
2 Ampere
External reset possible -
Rail mounting possible -
Rated control supply voltage at DC -
24 Volt
Degree of protection (IP rating) -
IP20
Release class -
CLASS 10 A
Type of electrical connection of main circuit -
Screw connection
Type of electrical connection for auxiliary- and control current circuit -
Other
Voltage type for actuating -
DC
Kind of motor starter -
Other
Rated operation power at AC-3, 230 V, 3-phase -
0.37 Kilowatt
Rated power, 460 V, 60 Hz, 3-phase -
0.551624062 Kilowatt
Rated operation current at AC-3, 400 V -
2 Ampere
Ambient temperature, upper operating limit -
60 Degrees celsius

Availability Back Order

£183.60
