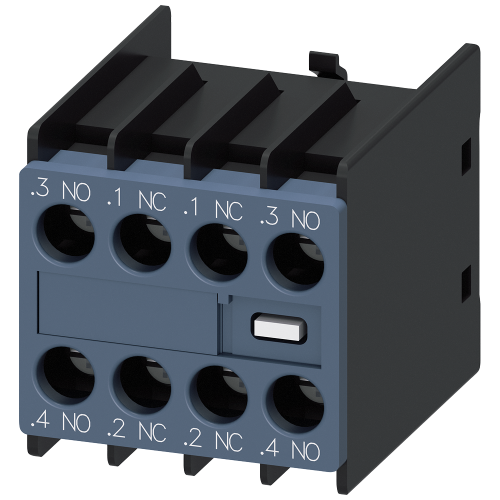

3RH29161FA22

Auxiliary switch on the front, 2 NO + 2 NC Current path 1 NO, 1 NC, 1 NC, 1 NO for 3RH and 3RT screw terminal .3/.4, .1/.2, .1/.2,

Manufacturer's No: 3RH2916-1FA22     Manufacturer: Siemens

Availability Back Order

£14.07
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Located on the front
  • Configuration: 2 Normally Open (NO) + 2 Normally Closed (NC) contacts
  • Current path: 1 NO, 1 NC, 1 NC, 1 NO
  • Screw terminal connection
  • Contact ratings: .3A/.4A, .1A/.2A, .1A/.2A, .3A/.4A
Question and Answer (Q&A video)
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video
Presentation video
Product video
Instructional video


Product

Manufacturer Material ID -
3RH2916-1FA22
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
RoHs Compliance -
Yes
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Model -
Clip-on
Lamp cap/base -
None
Mounting method -
Other
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
2
Number of fault-signal switches -
0
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection

Availability Back Order

£14.07
