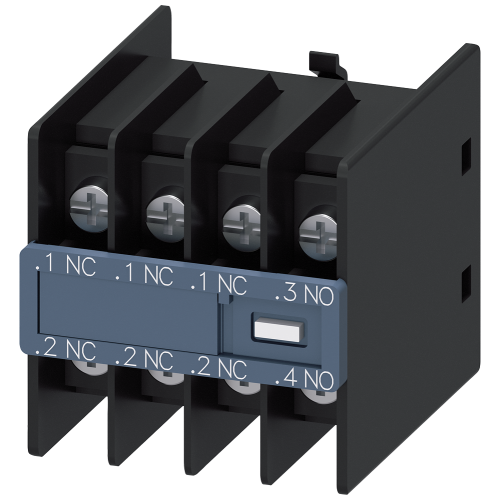

3RH29114HA13

Auxiliary switch on the front, 1 NO + 3 NC Current path 1 NC, 1 NC, 1 NC, 1 NO for 3RH and 3RT Ring

Manufacturer's No: 3RH2911-4HA13     Manufacturer: Siemens
Auxiliary switch on the front, 1 NO + 3 NC Current path 1 NC, 1 NC, 1 NC, 1 NO for 3RH and 3RT Ring

View 3D

Availability Back Order

£13.70
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Located on the front panel
  • Configuration: 1 Normally Open (NO) + 3 Normally Closed (NC) contacts
  • Current path: 1 NC, 1 NC, 1 NC, 1 NO
  • Ring cable lug connection
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-4HA13
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Other
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
3
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0

Availability Back Order

£13.70
