3RH29114HA10

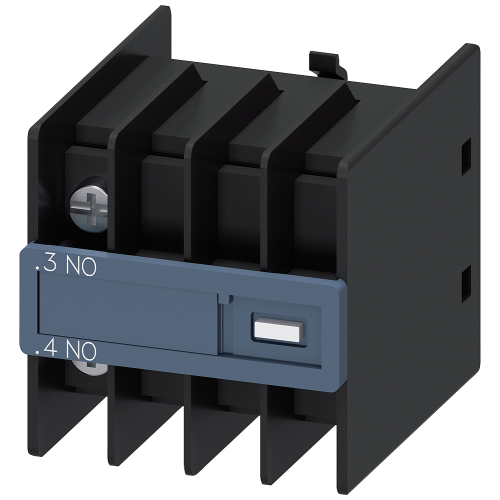

Auxiliary switch on the front, 1 NO Current path 1 NO for 3RH and 3RT Ring cable lug connection .3/.

Manufacturer's No: 3RH2911-4HA10     Manufacturer: Siemens
Auxiliary switch on the front, 1 NO Current path 1 NO for 3RH and 3RT Ring cable lug connection .3/.

View 3D

Availability Back Order

£6.45
  • Auxiliary switch with 1 Normally Open contact
  • Current rating: 0.3A at 24V DC / 0.4A at 230V AC
  • Compatible with contactors 3RT2 and contactor relays 3RH2
  • Ring cable lug connection
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-4HA10
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Other
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0

Availability Back Order

£6.45
