3RH29114FA40

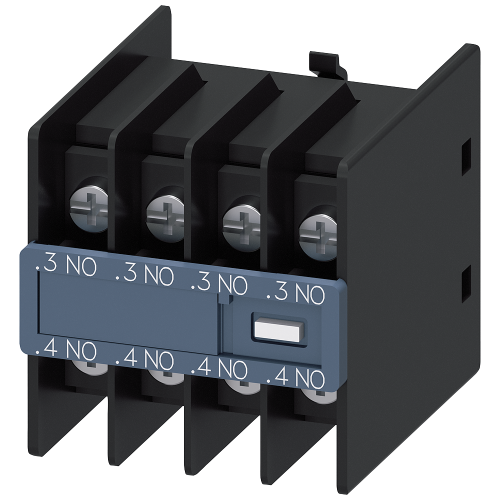

Auxiliary switch on the front, 4 NO Current path 1 NO, 1 NO, 1 NO, 1 NO for 3RH and 3RT Ring cable l

Manufacturer's No: 3RH2911-4FA40     Manufacturer: Siemens
Auxiliary switch on the front, 4 NO Current path 1 NO, 1 NO, 1 NO, 1 NO for 3RH and 3RT Ring cable l

View 3D

Availability Back Order

£13.70
  • Auxiliary switch with 4 Normally Open contacts
  • Contact current ratings: 0.3A/0.4A
  • Current path configuration: 1 Normally Open contact per path
  • Ring cable lug connection
  • Compatible with 3RT2 contactors and 3RH2 contactor relays
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-4FA40
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Other
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
4
Number of contacts as change-over contact -
0
