3RH29112XA040MA0

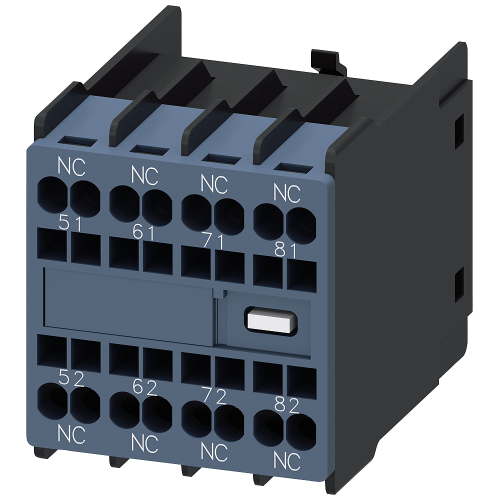

Auxiliary switch Front-side, 4 NC Current path 1 NC, 1 NC, 1 NC, 1 NC for 3RH2 and 3RT2 Spring-type

Manufacturer's No: 3RH2911-2XA04-0MA0     Manufacturer: Siemens
Auxiliary switch Front-side, 4 NC Current path 1 NC, 1 NC, 1 NC, 1 NC for 3RH2 and 3RT2 Spring-type

View 3D

Availability Back Order

£12.78
  • Auxiliary switch with 4 normally closed contacts
  • Front-mounted with current paths for 51/52, 61/62, 71/72, 81/82
  • Compatible with contactors 3RT2 and contactor relays 3RH2
  • Features spring-loaded terminals
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-2XA04-0MA0
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Spring clamp connection
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
4
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
0

Availability Back Order

£12.78
