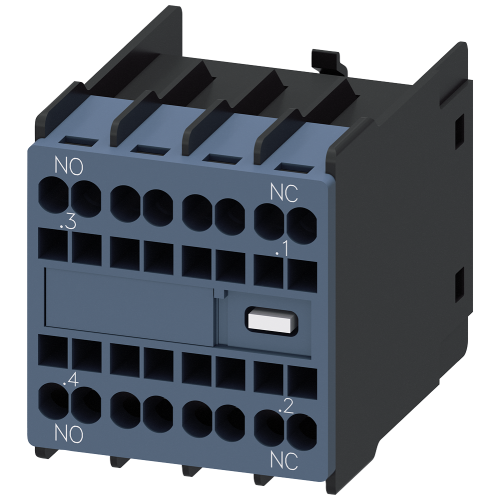

3RH29112NF11

Electron. contr. auxiliary switch on the front, 1 NO + 1 NC Current path 1 NO, 1 NC for 3RH and 3RT

Manufacturer's No: 3RH2911-2NF11     Manufacturer: Siemens
Electron. contr. auxiliary switch on the front, 1 NO + 1 NC Current path 1 NO, 1 NC for 3RH and 3RT

View 3D

Availability Back Order

£29.17
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Solid-state compatible
  • Configuration: 1 Normally Open (NO) + 1 Normally Closed (NC)
  • Front-mounted
  • Current ratings: 0.3A for NO, 0.4A for NC
  • Spring-loaded terminals
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-2NF11
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Rated operation current Ie at AC-15, 230 V -
- Ampere
Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Type of electric connection -
Spring clamp connection
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
1
Number of contacts as change-over contact -
0

Availability Back Order

£29.17
