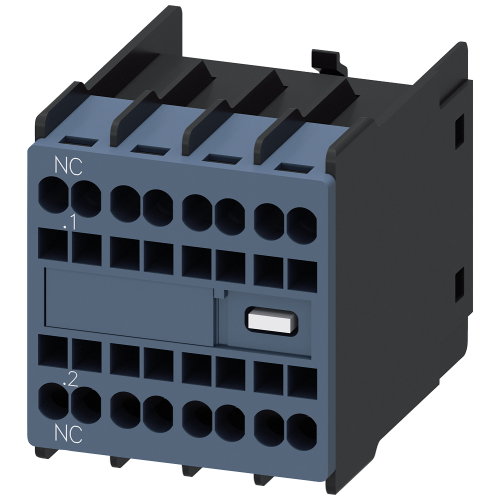

3RH29112HA01

Auxiliary switch on the front, 1 NC Current path 1 NC for 3RH and 3RT spring-type terminal .1/.2

Manufacturer's No: 3RH2911-2HA01     Manufacturer: Siemens
Auxiliary switch on the front, 1 NC Current path 1 NC for 3RH and 3RT spring-type terminal .1/.2

View 3D

Availability Back Order

£6.03
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Located on the front
  • Configuration: 1 Normally Closed (NC) contact
  • Current rating: 0.1A at 24V DC / 0.2A at 230V AC
  • Spring-loaded terminal connection
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-2HA01
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Spring clamp connection
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
0
Number of contacts as change-over contact -
0

Availability Back Order

£6.03
