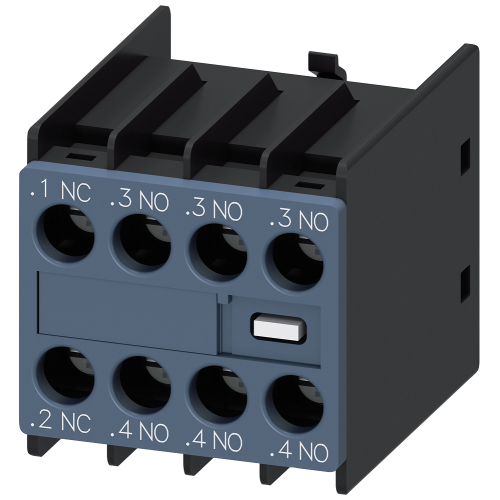

3RH29111HA31

Auxiliary switch on the front, 3 NO + 1 NC Current path 1 NC, 1 NO, 1 NO, 1 NO for 3RH and 3RT screw

Manufacturer's No: 3RH2911-1HA31     Manufacturer: Siemens
Auxiliary switch on the front, 3 NO + 1 NC Current path 1 NC, 1 NO, 1 NO, 1 NO for 3RH and 3RT screw

View 3D

Availability In Stock

£12.78
  • Auxiliary switch for contactors 3RT2 and contactor relays 3RH2
  • Located on the front panel
  • Configuration: 3 Normally Open (NO) + 1 Normally Closed (NC)
  • Current path: 1 NC, 3 NO
  • Screw terminal connection
Instructional video
Presentation video
Question and Answer (Q&A video)
Product video


Product

Manufacturer Material ID -
3RH2911-1HA31
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85365080
Country of Origin -
CZ
Export Control Regulations -
N / N
Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

Lamp holder -
None
Mounting method -
Other
Model -
Clip-on
Lamp cap/base -
None
Rated operation current Ie at AC-15, 230 V -
6 Ampere
Type of electric connection -
Screw connection
Number of fault-signal switches -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
3
Number of contacts as change-over contact -
0

Availability In Stock

£12.78
