286-368/004-000

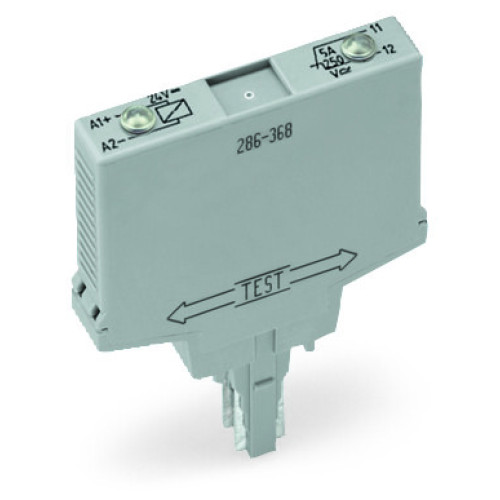

Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Path; Red status indicator; 10 mm

Manufacturer's No: 286-368/004-000     Manufacturer: WAGO
Relay module; Nominal input voltage: 24 VDC; 1 break contact; Limiting continuous current: 5 A; Path; Red status indicator; 10 mm wide

Availability Back Order

£34.30
  • Relay module for railway applications
  • Nominal input voltage: 24 VDC
  • 1 break contact
  • Limiting continuous current: 3 A
  • Red status indicator
  • Module width: 10 mm
  • Color: gray

Accessories



Product

Manufacturer Material ID -
286-368/004-000
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85364900
Country of Origin -
DE
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
82.5 Millimetre
Nominal current -
3 Ampere
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
1
Number of contacts as normally open contact -
0
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Plug-in connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
10 Millimetre
With LED indication -

Availability Back Order

£34.30
