286-328

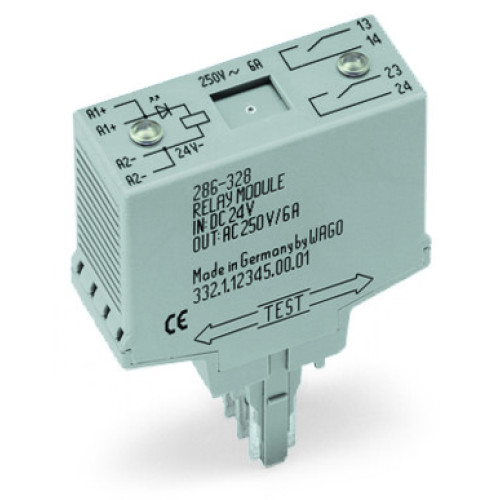

Relay module, Nominal input voltage: 24 VDC, 2 make contact, Limiting continuous current: 6 A, Red s

Manufacturer's No: 286-328     Manufacturer: WAGO
Relay module, Nominal input voltage: 24 VDC, 2 make contact, Limiting continuous current: 6 A, Red s

Availability Back Order

£56.56
  • Relay module
  • Nominal input voltage: 24 VDC
  • 2 make contact
  • Limiting continuous current: 6 A
  • Red status indicator
  • Module width: 20 mm
  • Color: gray

Accessories



Product

Manufacturer Material ID -
286-328
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85366990
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
39121529

Technical Specification

Rated control supply voltage Us at AC 50HZ -
- Volt
Rated control supply voltage Us at AC 60HZ -
- Volt
Rated control supply voltage Us at DC -
24 Volt
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Drive, polarization -
Polarized
Drive, switching attitude -
Mono stable
Height -
82.5 Millimetre
Nominal current -
6 Ampere
Number of contacts as change-over contact -
0
Number of contacts as normally closed contact -
0
Number of contacts as normally open contact -
2
Rated control supply voltage at DC -
24 Volt
Type of electric connection -
Plug-in connection
Type of switch contact -
Single contact
Voltage type for actuating -
DC
Width -
20 Millimetre
With LED indication -
