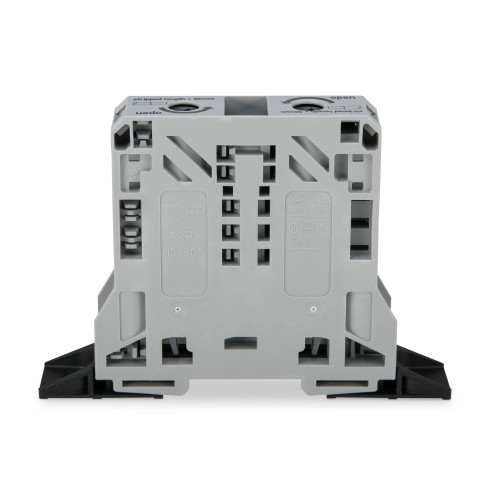

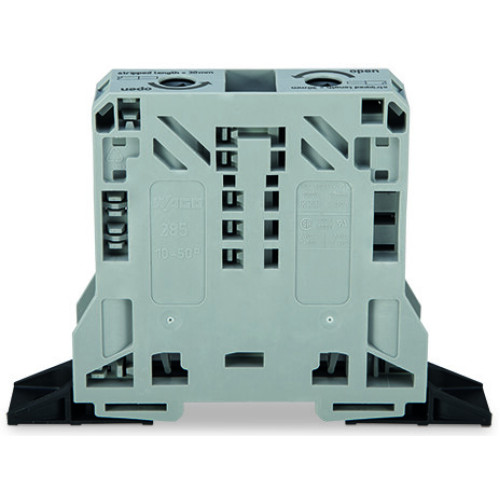

285-141

2-conductor through terminal block; 50 mm; lateral marker slots; with fixing flanges; POWER CAGE CLAMP

Manufacturer's No: 285-141     Manufacturer: WAGO
2-conductor through terminal block; 50 mm; lateral marker slots; with fixing flanges; POWER CAGE CLAMP

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£14.73
  • Terminal block type: 2-conductor through
  • Conductor size: 50 mm²
  • Features lateral marker slots
  • Equipped with fixing flanges
  • Connection type: POWER CAGE CLAMP
  • Maximum conductor size: 50.00 mm²
  • Color: Gray

Accessories

Power Tap, For 50 mm High-Current Tbs Module Width 16 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-447
Price £2.62
In Stock

Protective Warning Marker, With High-Voltage Symbol, Black Yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-440
Price £0.43
In Stock

Marker Carrier, For Power Cage Clamp 35/50/95 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-442
Price £0.25
Back Order

Fixing element; for 50 mm high-current terminal blocks

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-448
Price £1.35
Back Order

Protective warning marker, yellow

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 285-449
Price £0.38
Back Order


Product

Manufacturer Material ID -
285-141
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
PL
UNSPSC -
39121410

Technical Specification

Connectable conductor cross section fine-strand with cable end sleeve -
- Square millimetre
Connectable conductor cross section multi-wired -
- Square millimetre
Length -
130 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
20 Millimetre
Height at lowest possible mounting height -
94 Millimetre
Connection position -
Sideways
Colour -
Grey
Connectable conductor cross section fine-strand without cable end sleeve -
10 Square millimetre
Connectable conductor cross section solid-core -
10 Square millimetre
Depth -
94 Millimetre
Height -
130 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
DIN rail (top hat rail) 35 mm
Number of clamp positions per level -
2
Number of levels -
1
Operating temperature -
105 Degrees celsius
Rated current In -
150 Ampere
Rated voltage -
1000 Volt
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection
Width -
20 Millimetre
