2091-1122

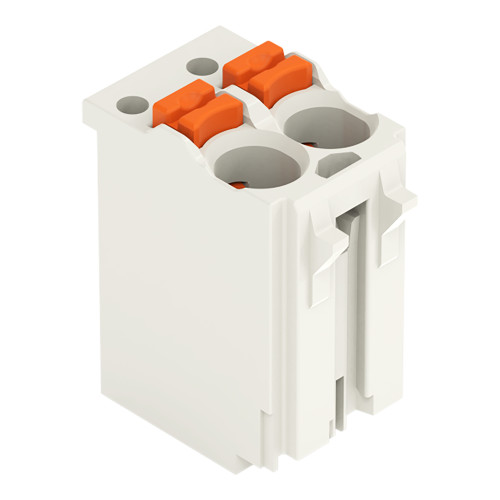

1-conductor female connector, push-button, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1

Manufacturer's No: 2091-1122     Manufacturer: WAGO
1-conductor female connector, push-button, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.61
  • 1-conductor female connector
  • Push-button with Push-in CAGE CLAMP®
  • 2-pole design
  • Accommodates 1.5 mm² wire
  • Pin spacing of 3.5 mm
  • Color: light gray

Accessories

Coding Key Carrier, Suitable For 3.5 mm Pin Spacing Orange

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1610
Price £0.10
Back Order


Product

Manufacturer Material ID -
2091-1122
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
82032000
Country of Origin -
DE
Minimum Order Quantity -
200
UNSPSC -
39121402

Mechanical data

Drill hole distance centrically -
- Millimetre
Length -
11.4 Millimetre
Width/grid dimension -
3.5 Millimetre
Depth -
11.4 Millimetre
Height -
14 Millimetre
Inflammability class of insulation material acc. with UL94 -
V0
Material insulation body -
Thermoplastic
Mounting method -
Other
Width -
3.5 Millimetre

General data

Operation temperature -
-60 Degrees celsius
Height at lowest possible mounting height -
14 Millimetre
Connection position -
Above
Colour -
Grey
Connectable conductor cross section fine-strand with cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.2 Square millimetre
Connectable conductor cross section multi-wired -
0.2 Square millimetre
Connectable conductor cross section solid-core -
0.2 Square millimetre
Number of clamp positions per pole -
1
Number of poles -
2
Type of electrical connection 1 -
Spring clamp connection
Type of electrical connection 2 -
Spring clamp connection

Ambient conditions

Operating temperature -
-60 Degrees celsius

Electrical data

Rated current In -
10 Ampere
Rated voltage -
160 Volt

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£0.61
