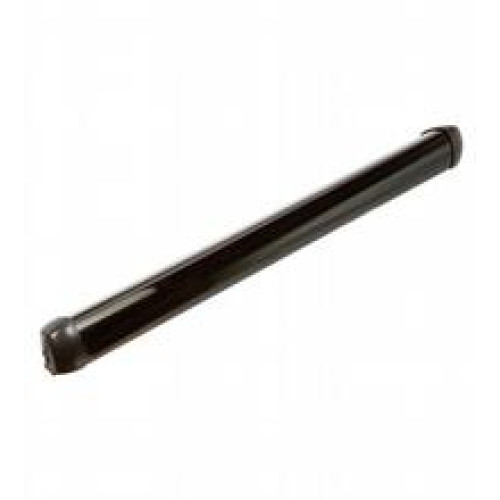

TopScan-S-MS/L900

Number of beams: 2 (number of built-in sensor modules AIR), Light type: modulated infrared light 875 nm, Signal output: Relay, 1 a

Manufacturer's No: 205835     Manufacturer: Pepperl+Fuchs
Number of beams: 2 (number of built-in sensor modules AIR), Light type: modulated infrared light 875 nm, Signal output: Relay, 1 alternator, Switching type: Relay de-energized at object inside the ..

Availability Back Order

£415.79
  • Number of beams: 2 (AIR sensor modules)
  • Light type: Modulated infrared light at 875 nm
  • Signal output: Relay with 1 alternator
  • Switching type: Relay de-energized when object is detected within scanning range
  • Connection: Screw terminals
  • Cable cross-section: 0.3 mm2 to 1.3 mm2 (AWG26-16), single-stranded/multistranded CU
  • Operating voltage: 24 V DC +/- 20%
  • Ambient temperature: -10°C to 50°C (14°F to 122°F)


Product

Manufacturer Material ID -
205835
Net Weight -
0.74kg

Additional Product Information

Commodity Code -
8536 5019
Country of Origin -
SG
UNSPSC -
41111926
