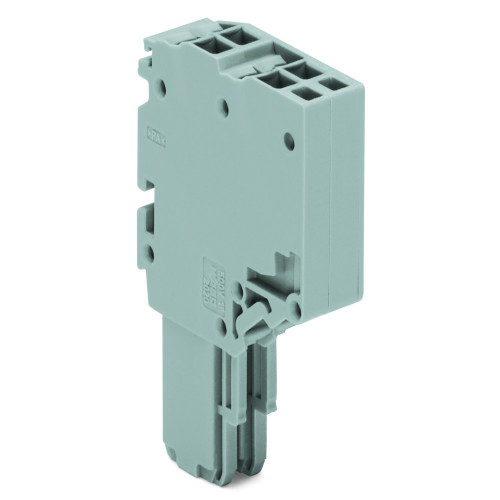

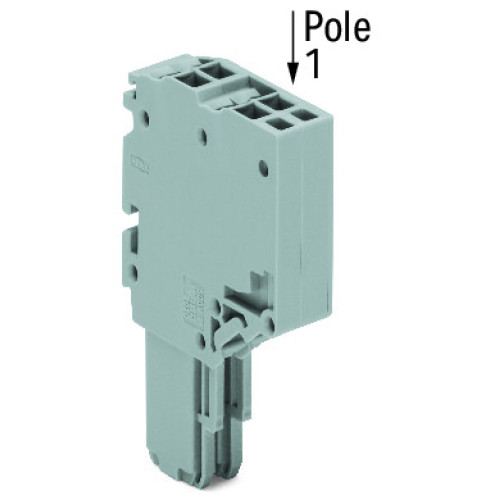

2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray

2020-202

2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray

Produced by WAGO

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

Price - £3.42
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray
No alternatives available for this product.
Product
Manufacturer Material ID -
2020-202
Net Weight -
0.01kg
Additional Product Information
Commodity Code -
85369010
UNSPSC -
39121402
Technical Specification
Length -
25 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
3.5 Millimetre
Height at lowest possible mounting height -
39 Millimetre
Rated voltage -
500 Volt
Number of poles -
2
Operating temperature -
105 Degrees celsius
Number of clamp positions per pole -
2
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Rated current In -
13.5 Ampere
product_description -
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray Ampere
product_description -
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray Ampere
product_description -
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray Ampere
product_description -
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray Ampere
product_description -
2-conductor female connector, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1, 50 mm, gray Ampere

Additional Information

Data Sheets
