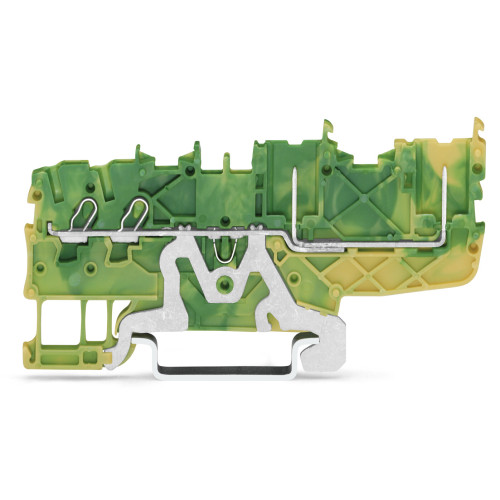

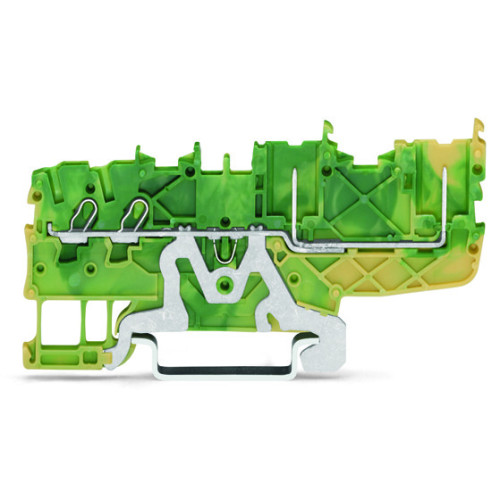

2-conductor/2-pin ground carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLA

2020-1407

2-conductor/2-pin ground carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLA

Produced by WAGO

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

Price - £2.05
2-conductor/2-pin ground carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP
No alternatives available for this product.
Product
Manufacturer Material ID -
2020-1407
Net Weight -
0.01kg
Additional Product Information
Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
50
UNSPSC -
39121402
Technical Specification
Length -
85.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
3.5 Millimetre
Height at lowest possible mounting height -
32.5 Millimetre
Operating temperature -
105 Degrees celsius
Number of levels -
1
Number of clamp positions per level -
4
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
product_description -
2-conductor/2-pin ground carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP Square millimetre
product_description -
2-conductor/2-pin ground carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP Square millimetre
product_description -
2-conductor/2-pin ground carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP Square millimetre
product_description -
2-conductor/2-pin ground carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5 Push-in CAGE CLAMP Square millimetre

Additional Information

Data Sheets
