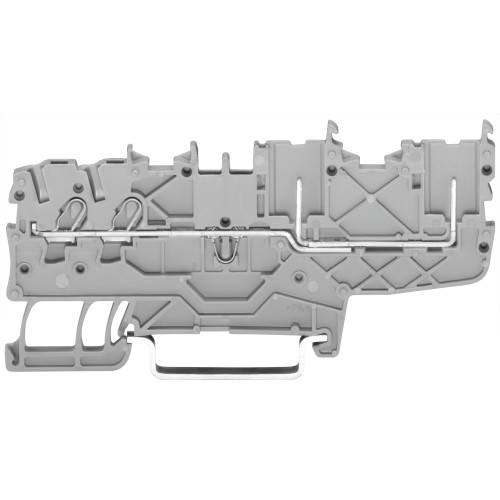

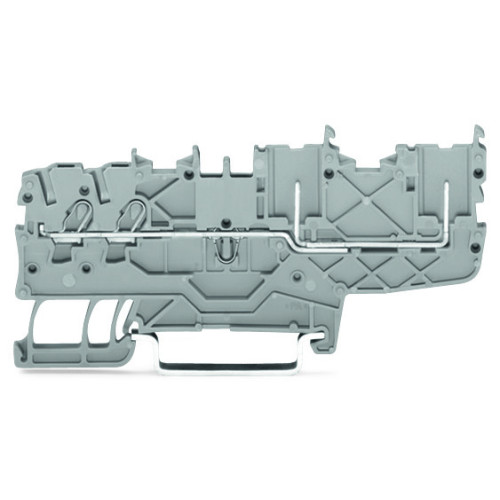

2-Conductor/2-Pin Carrier Tb, According To En 60715 Gray

2020-1401

2-Conductor/2-Pin Carrier Tb, According To En 60715 Gray

Produced by WAGO

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

Price - £1.05
List Price £1.40
2-conductor/2-pin carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1, 0
No alternatives available for this product.
Product
Manufacturer Material ID -
2020-1401
Net Weight -
0.01kg
Additional Product Information
Commodity Code -
85369010
Country of Origin -
CN
Minimum Order Quantity -
50
UNSPSC -
39121402
Technical Specification
Length -
85.2 Millimetre
Operation temperature -
105 Degrees celsius
Width/grid dimension -
3.5 Millimetre
Height at lowest possible mounting height -
32.5 Millimetre
Rated voltage -
500 Volt
Operating temperature -
105 Degrees celsius
Number of levels -
1
Number of clamp positions per level -
4
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.5 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.14 Square millimetre
Connectable conductor cross section multi-wired -
0.14 Square millimetre
Rated current In -
13.5 Ampere
product_description -
1.5MM² CARRIER TERMINAL 2COND/2PIN Ampere

Additional Information

Data Sheets
