2001-554

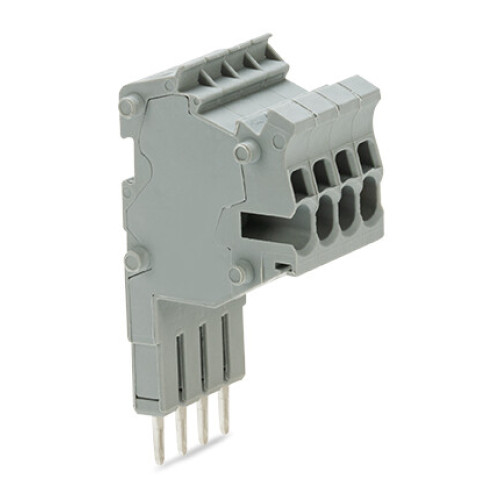

TOPJOBS Connector Strip, For Jumper Contact Slot 4-Pole Gray

Manufacturer's No: 2001-554     Manufacturer: WAGO
TOPJOBS Connector Strip, For Jumper Contact Slot 4-Pole Gray

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£4.7475
List Price £6.33
  • Modular TOPJOB®S connector
  • 4-pole
  • Designed for jumper contact slot
  • Wire size capacity: 1.50 mm²
  • Color: Gray

Accessories

Ferrule, Sleeve For 0.5 mm / Awg 22 Insulated White

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-241
Price £0.09
Back Order

Ferrule, Sleeve For 0.75 mm / Awg 20 Insulated Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-242
Price £0.09
Back Order

Ferrule, Sleeve For 1.5 mm / Awg 16 Insulated Black

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 216-244
Price £0.09
Back Order

Insulation Stop, 0.25 - 0.5 mm 5 Pieces/Strip Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2001-171
Price £0.0825
List Price £0.11
Back Order


Product

Manufacturer Material ID -
2001-554
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
85369010
Country of Origin -
DE
Minimum Order Quantity -
25
UNSPSC -
39121402

Technical Specification

Width/grid dimension -
4.2 Millimetre
Model -
Pin insert
Rated voltage -
500 Volt
Number of poles -
4
Type of electric connection -
Spring clamp connection
Tackable -
Total number of poles (without ground contact) -
4
Connectable conductor cross section solid-core -
0.5 Square millimetre
Connectable conductor cross section fine-strand with cable end sleeve -
0.75 Square millimetre
Connectable conductor cross section fine-strand without cable end sleeve -
0.25 Square millimetre
Connectable conductor cross section multi-wired -
0.25 Square millimetre
Connectable conductor cross section -
0.25 Square millimetre
Rated current In -
18 Ampere

Availability Back Order

Once added to the cart, you can split this pack for a charge of £16.00

£4.7475
List Price £6.33
