2TLA020070R1700

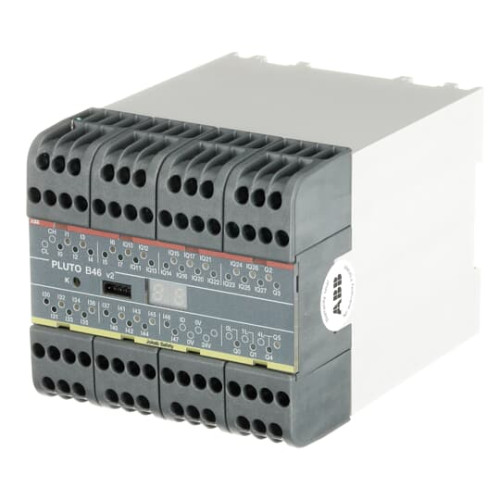

Pluto B46 v2 Programmable safety controller

Manufacturer's No: 20-070-17     Manufacturer: ABB
Pluto B46 v2 Programmable safety controller

Availability Back Order

£1,374.80
  • Pluto B46 v2 Programmable Safety Controller
  • Cost-effective, powerful, and compact safety PLC
  • Compatible with most safety devices on the market
  • Supports connection of multiple safety sensors to a single input
  • Programming done easily with Pluto Manager software
  • Features Pluto safety bus
  • 46 I/O in total:
    • 24 failsafe inputs
    • 16 non-failsafe outputs/failsafe inputs
    • 4 individually failsafe relay outputs
    • 2 individually failsafe transistor outputs
  • 24 failsafe inputs
  • 16 non-failsafe outputs/failsafe inputs
  • 4 individually failsafe relay outputs

Read more

  • 2 individually failsafe transistor outputs


Product

Manufacturer Material ID -
20-070-17
Net Weight -
0.65kg

Additional Product Information

Commodity Code -
8536411090
Country of Origin -
SE
Minimum Order Quantity -
1
UNSPSC -
39122331

Technical Specification

With display -
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Performance level acc. EN ISO 13849-1 -
Level e
Depth -
120 Millimetre
Display -
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
84 Millimetre
Max. number of time switches -
256
Memory size -
128 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
3
Number of analogue outputs -
0
Number of digital inputs -
40
Number of digital outputs -
22
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
1
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
4
Performance level acc. to EN ISO 13849-1 -
None
Processing time (1K, binary operation) -
1 Millisecond
Rail mounting possible -
Redundancy -
SIL according to IEC 61508 -
3
Suitable for safety functions -
Supply voltage AC 50 Hz -
0 Volt
Supply voltage AC 60 Hz -
0 Volt
Supply voltage DC -
24 Volt
Supporting protocol for CAN -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Type of memory -
FLASH
Voltage type of supply voltage -
DC
Width -
90 Millimetre
ABB

Availability Back Order

£1,374.80
